| Type | Concrete Barrage founded in RBM |
| Height of Barrage (from River Bed level) | 24.5 m |
| Total Floor Length | 100.0 m |
| Number, type of gates | 4 Nos. Radial Gates |
projects
Tashiding HEP
Salient Features

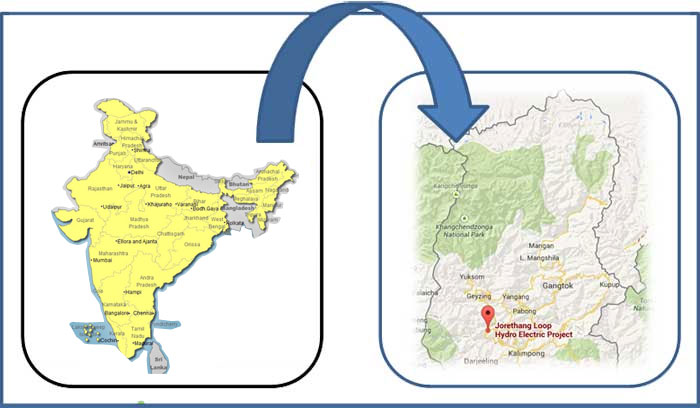

Project location
Barrage

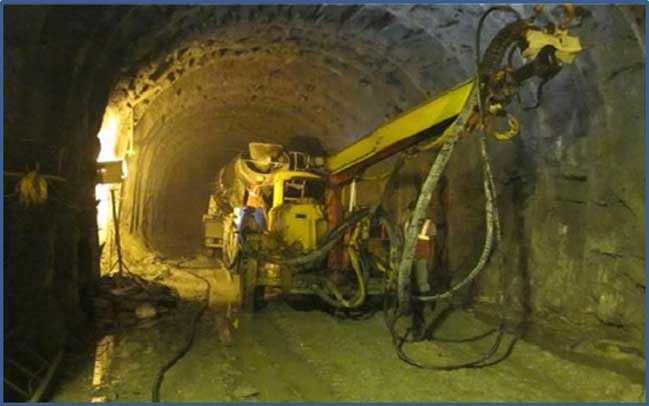

HRT
| Shape in cross-section | D-shaped |
| Length | 5.7 km |
| Diameter | 5.00 m (Finished) |
| Lining | Fully Concrete Lined |
| Design discharge | 53.42 m3/sec. |

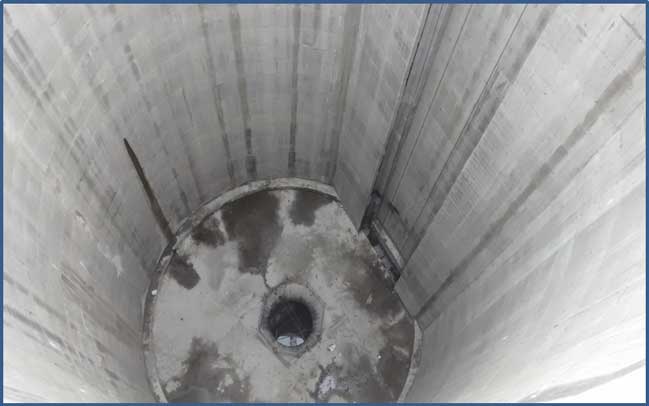

Surge Shaft
| Type | Underground, Restricted orifice type vertical |
| Diameter of Surge Shaft | 10.0 m |
| Orifice Diameter | 2.46 m |
| Height of Shaft | 72.5 m |

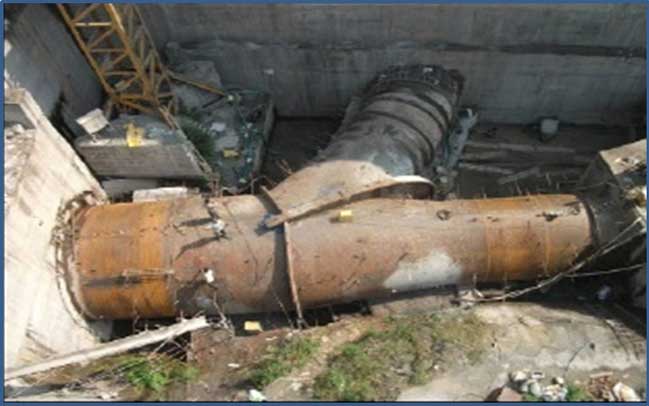

Penstock
| Type and diameter | Steel lined of 3.8 m dia bifurcating into two of 2.7m at power house end |
| No of Anchor Blocks | 7 |
| Total length | 515 m |

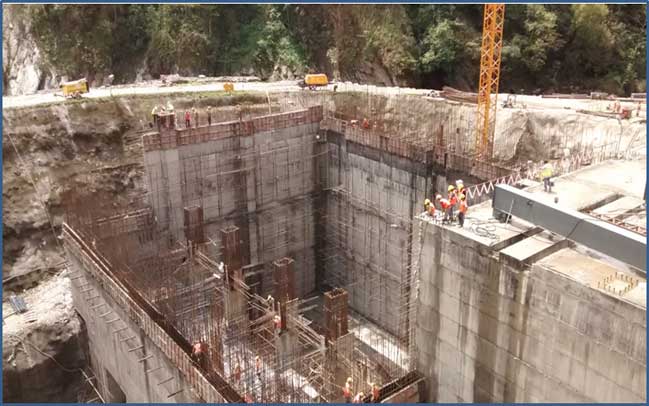

Power House
| Type | Surface |
| Number of Units | Two (2) |
| Installed capacity | 97 MW |
| Machine Type | Vertical Axis Francis Turbine |
| Inlet Valve type | Spherical Type |

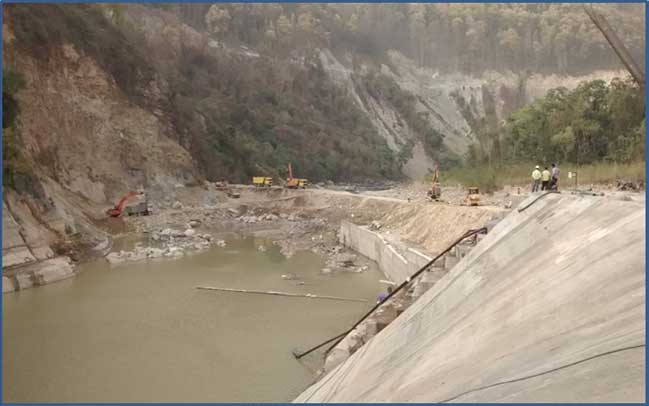

TRC
| Type | Cut & Cover conduit |
| Design Discharge | 53.4m3/sec. |

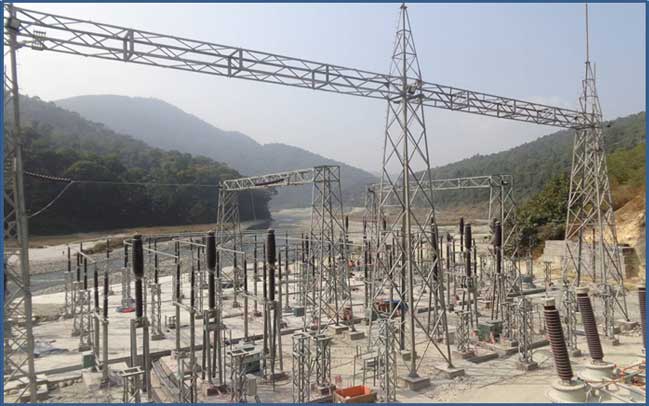

Switchyard & Transmission
| Switchyard Type | Outdoor |
| Voltage/ Bus bars | 220 kV/ 11 kV |
| Transmission Line Type | Switchyard to Legship Pooliing Station, Double circuit, 220 kV |
| Length | 6.9 km |
